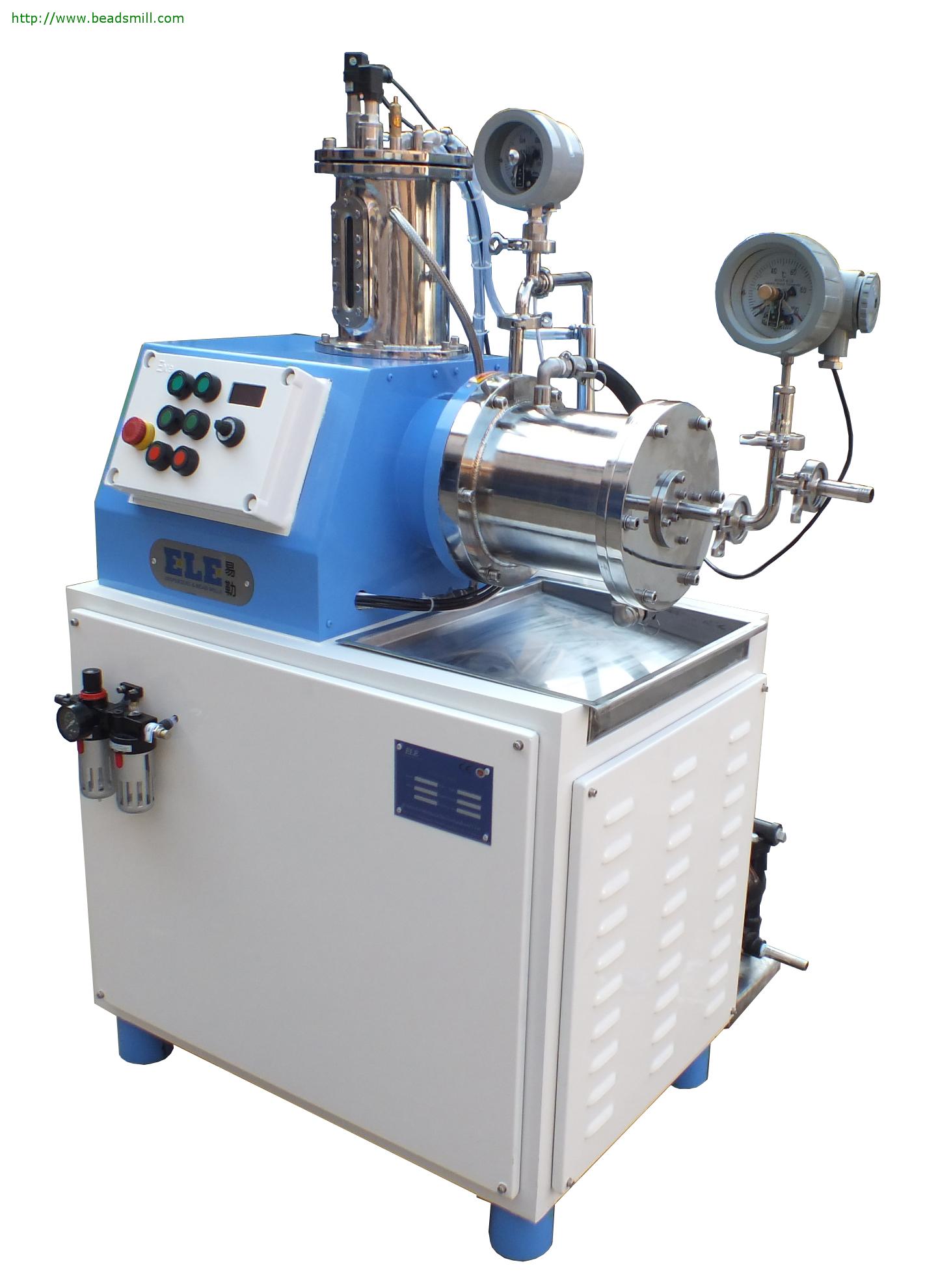

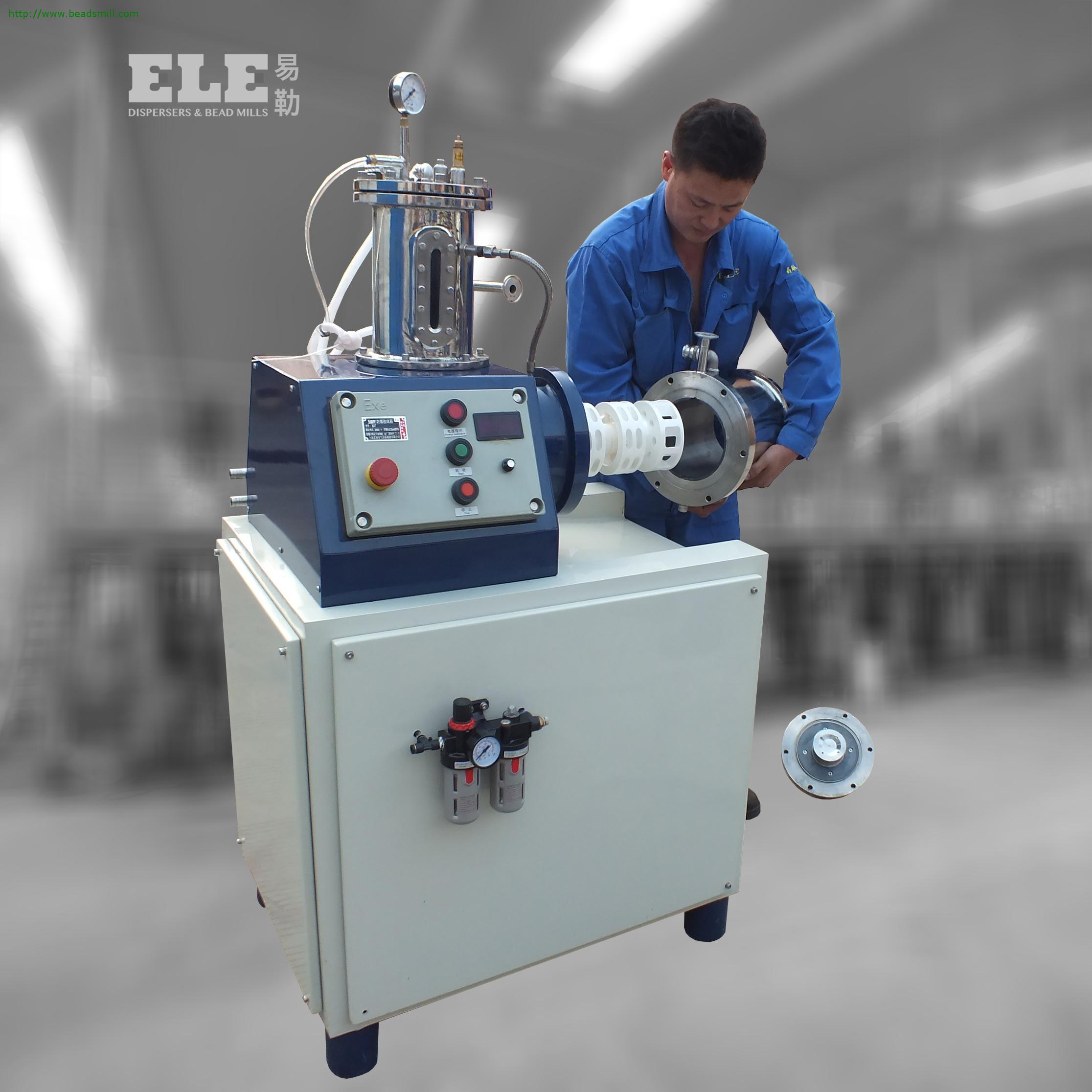

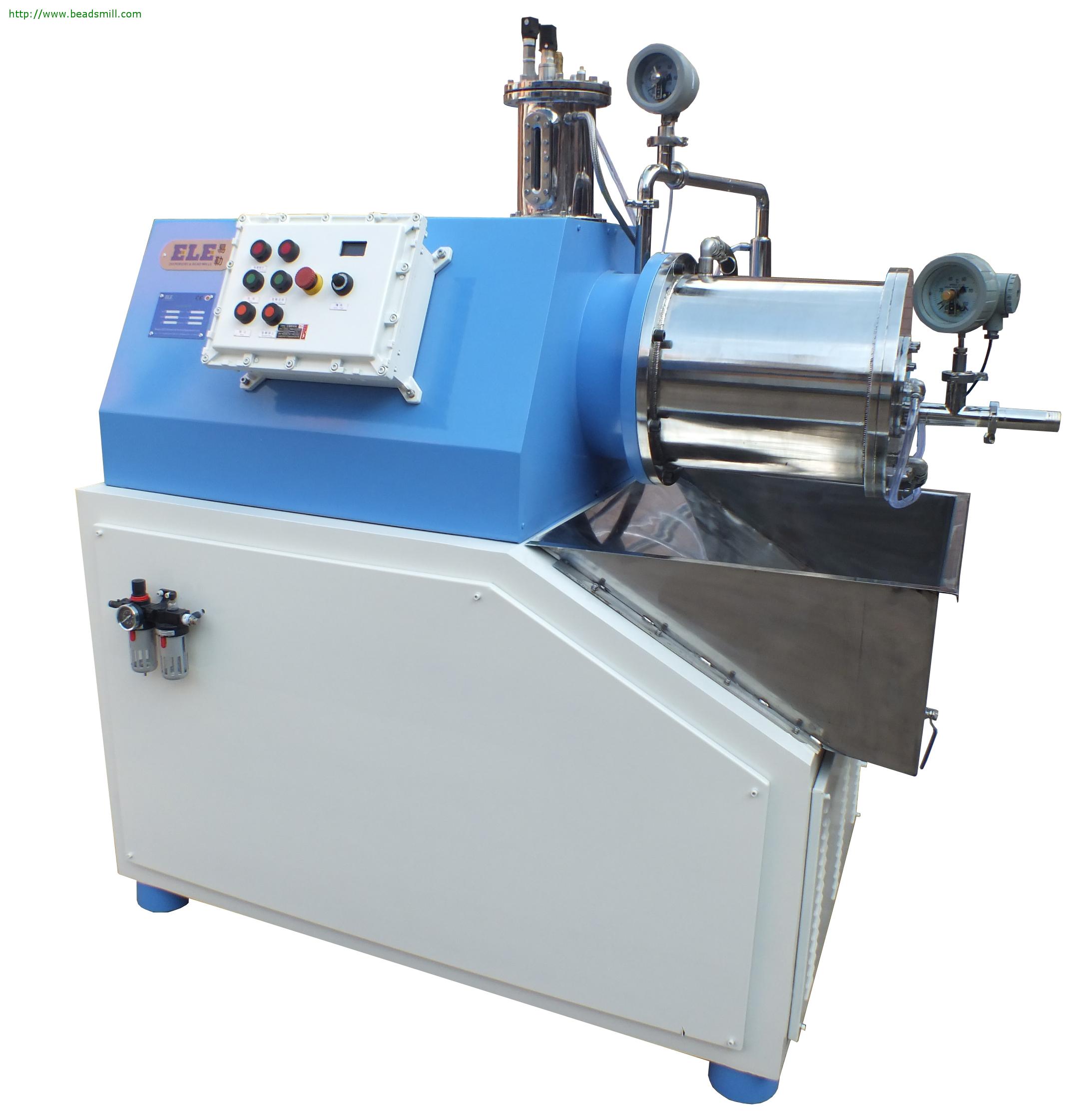

Turbo-type horizontal bead mill

ENW-Turbo-type Turbo-type Bead Mill ENW -Turbo-type

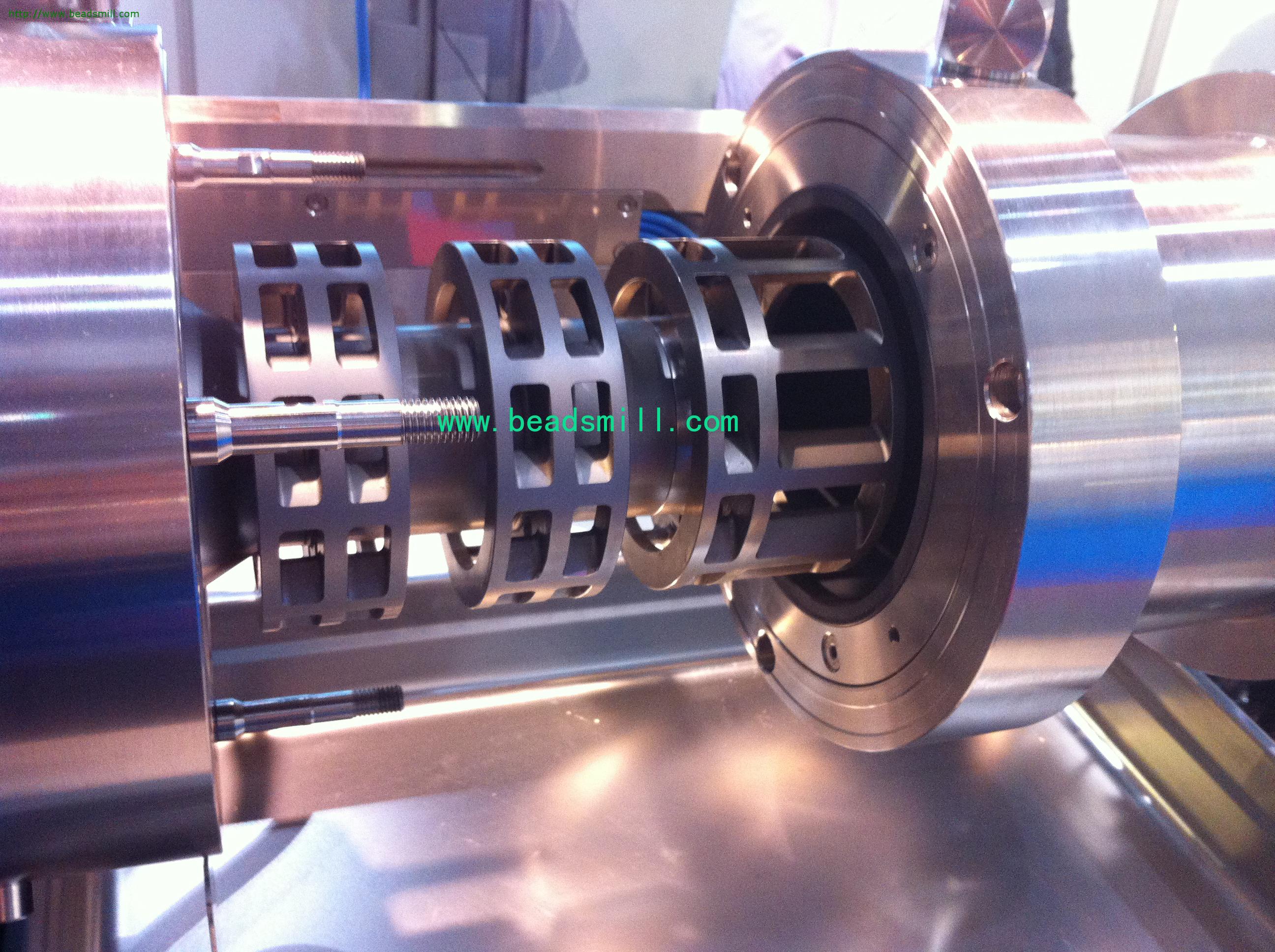

Turbo-type bead mill is the most efficient equipment in wet grinding machine, whose optimization design of accelerating turbo wheels provides more kinetic energy for beads in chamber. At the same time, distribution of grinding beads is more uniform ,thus distribution of fineness is much narrower .With high efficient and supper fineness performance, it is the most ideal machine for the users in packaging printing ink, color paste, car finish paint, nano materials, electronic materials, etc ... ELE-NET0.1 discharging sieve is designed for ultra fine materials, ensure of large flow rate mean while micro beads can be used.
Product Feature：
Suitable for low and medium viscosity materials, and with the requirements of ultra fineness or nanoscale fineness Multiple cooling system , powerful cooling efficiency Efficient separation system, not block or break beads, discharging more smoothly and more quickly High energy intensive output, even smaller grinding fineness With excellent length and diameter ratio, narrower particle size distribution

Configuration parameters：

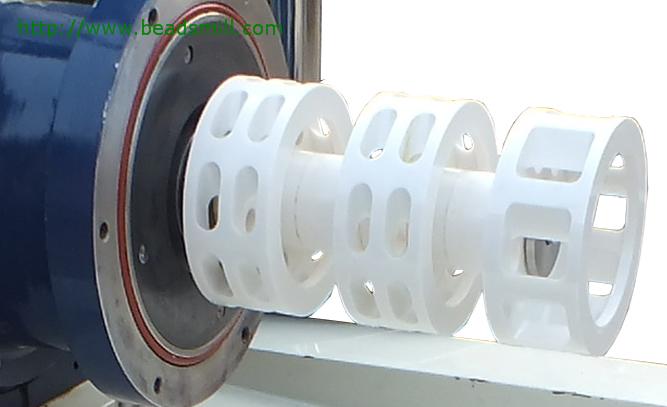

The rotor material: high wearing resistant ceramic zirconia
Chamber material: high wearing resistant ceramic zirconia/silicon carbide
Sealing way: cartridge double mechanical seal, dedicated to bead mill, specially designed for materials with small granule .Whole unit, convenient to install and use, no need professionals to change it
Discharging sieve specifications: large area of tubular reseau, 0.05/0.1/0.3/0.5 mm optional
Instrument: electric contact pressure gauge & electric contact temperature gauge (with temperature protection, automatic stop over limit).
Feeding pump: pneumatic diaphragm pump, screw pump or gear pump

Application：

Paint: automobile paint, finish paint, wood paint, industrial paint, etc
Printing ink: gravure printing ink, offset printing ink, silk screen ink, UV light solid ink, inkjet, etc
color paste, pigment, carbon black, phthalocyanine blue, yellow, titanium dioxide, dyestuff, pen liquid, watercolor
Electronic materials: battery diaphragm alumina, Fe batteries, ceramic slurry,
Chocolate syrup, pesticide concentrated suspension, biologic medicine, cosmetics, microbial functional materials.
Nanometer material, metal oxide, magnetic materials, papermaking industry, optoelectronic industry.

Contact us：

E-MAIL:sale@elemix.cn

E-MAIL:sale@elemix.cn

Technical data：

Model	Chamber volume/L	Power/Kw	Speed/rpm	Output/L/H	Dimension/mm	Weight/kg
ENW-5	5	7.5-11	1500	30-200	1300X1050X450	650
ENW-15	15	30-37	1000-1500	100-500	1600X1450X650	1200
ENW-25	25	37-45	700-1200	200-800	1850X1750X950	1700
