Sand Mill Nano pin-type bead mill

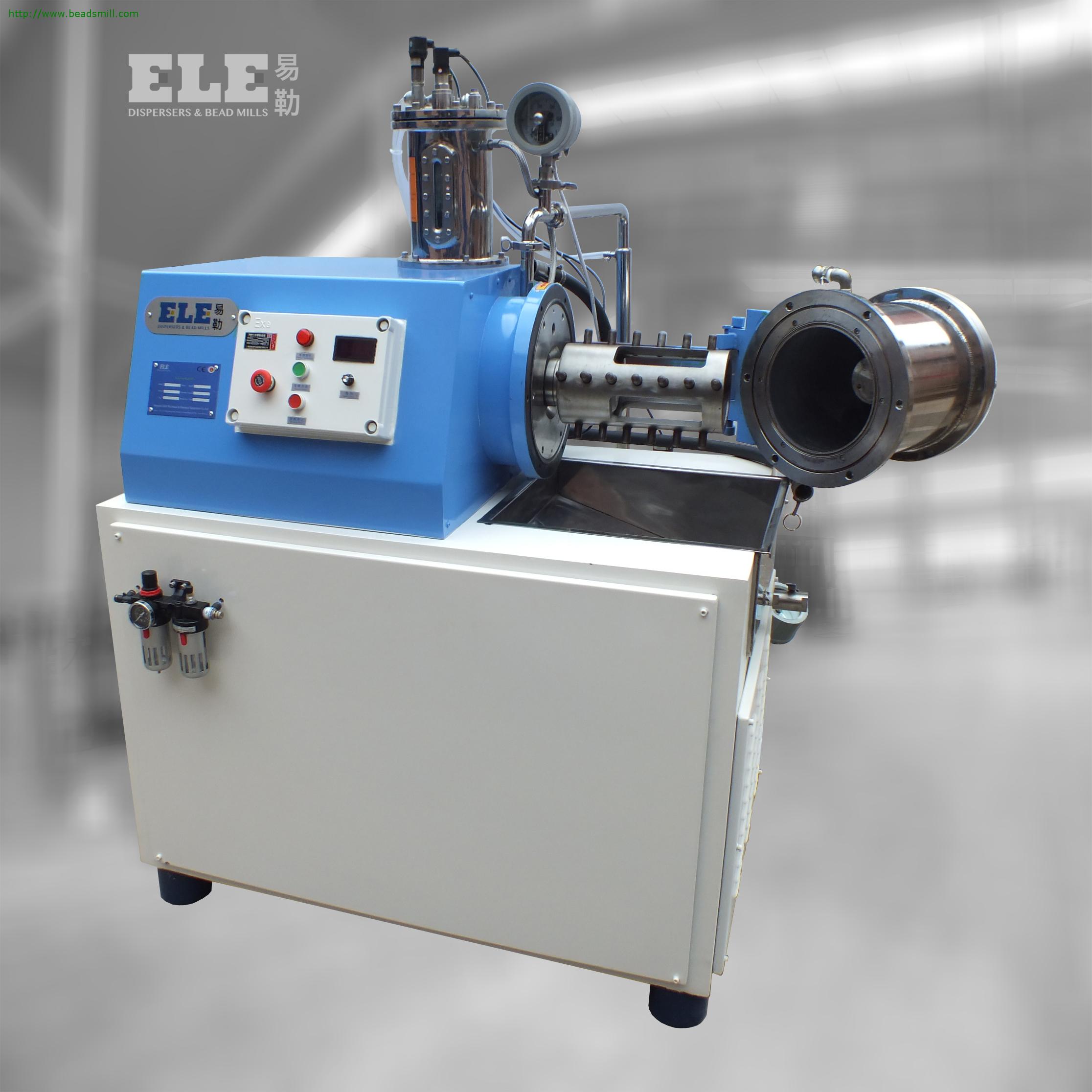

EDW-Sand Mill Nano Pin Type Bead Mill
The type is the world’s top wet grinding machine, designed and developed for ultrafine grinding materials of high cleanliness and without metal contamination. High quality of ELE Full Ceramic Pin Type Bead Mill not only comes from its outstanding processing technology, but also sources on strict quality control for raw material .All used high -purity ceramic raw materials are imported.
Product Feature：
Full ceramic structure, high wearing resistance, no containminations Multiple cooling system , powerful cooling efficiency Efficient separation system, not block or break beads, discharging more smoothly and more quickly High energy intensive output, even smaller grinding fineness With excellent length and diameter ratio, narrower particle size distribution

Configuration parameters：

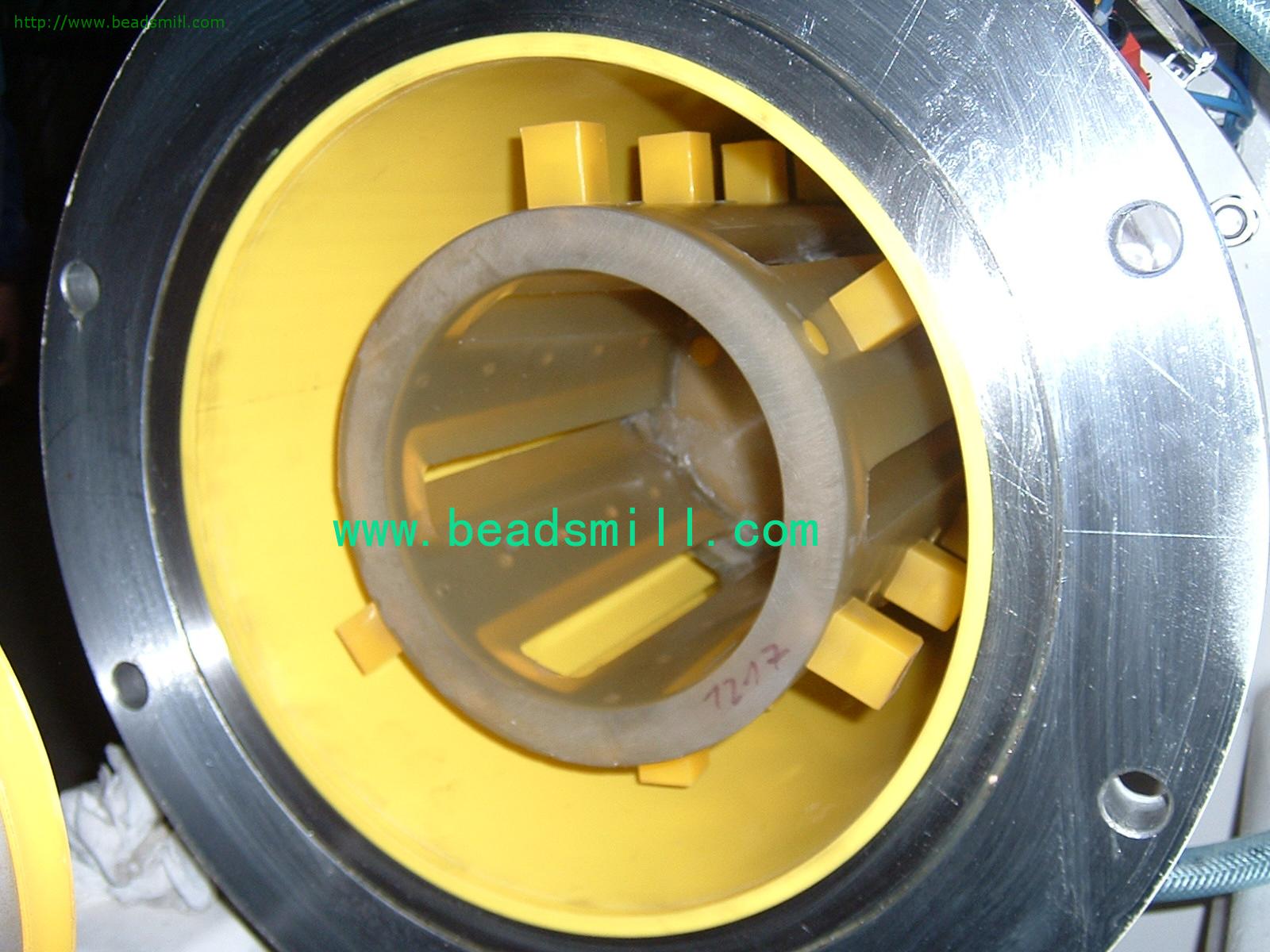

The rotor material: high wearing resistant ceramic zirconia
Chamber material: high wearing resistant ceramic zirconia/silicon carbide
Sealing way: cartridge double mechanical seal, dedicated to bead mill, specially designed for materials with small granule .Whole unit, convenient to install and use, no need professionals to change it
Discharging sieve specifications: large area of tubular reseau, 0.05/0.1/0.3/0.5 mm optional
Instrument: electric contact pressure gauge & electric contact temperature gauge (with temperature protection, automatic stop over limit).
Feeding pump: pneumatic diaphragm pump, screw pump or gear pump
Grinding medium: pure zirconia beads with more than 95% zirconium content, beads size 0.1~1.0mm
Electrical control system: explosion-proof/non explosion-proof configuration optional, with site operation panel (touch screen/frequency infinitely adjustable-speed optional)

Application：

Paint: automobile paint, finish paint, wood paint, industrial paint, etc
Printing ink: gravure printing ink, offset printing ink, silk screen ink, UV light solid ink, inkjet, etc
color paste, pigment, carbon black, phthalocyanine blue, yellow, titanium dioxide, dyestuff, pen liquid, watercolor
Electronic materials: battery diaphragm alumina, Fe batteries, ceramic slurry,
Chocolate syrup, pesticide concentrated suspension, biologic medicine, cosmetics, microbial functional materials.

Nanometer material, metal oxide, magnetic materials, papermaking industry, optoelectronic industry.

Contact us：

E-MAIL:sale@elemix.cn

E-MAIL:sale@elemix.cn

Technical data：

Model	Chamber volume/L	Power/Kw	Speed/rpm	Output/L/H	Dimension/mm	Weight/kg
EDW-5	5	7.5-11	1500	30-200	1300X1050X450	650
EDW-10	10	15-30	1200	50-300	1600X1450X650	980
EDW-15	15	30-37	1000-1500	100-500	1600X1450X650	1200
EDW-30	30	37-45	700-1200	200-1000	1650X1550X750	1700
EDW-50	50	55-75	500-800	500-2000	1900X1850X850	2300
